Automatic Plastic Glass Bottle Round Bottle Labeling Machine

Product Description

Products Description

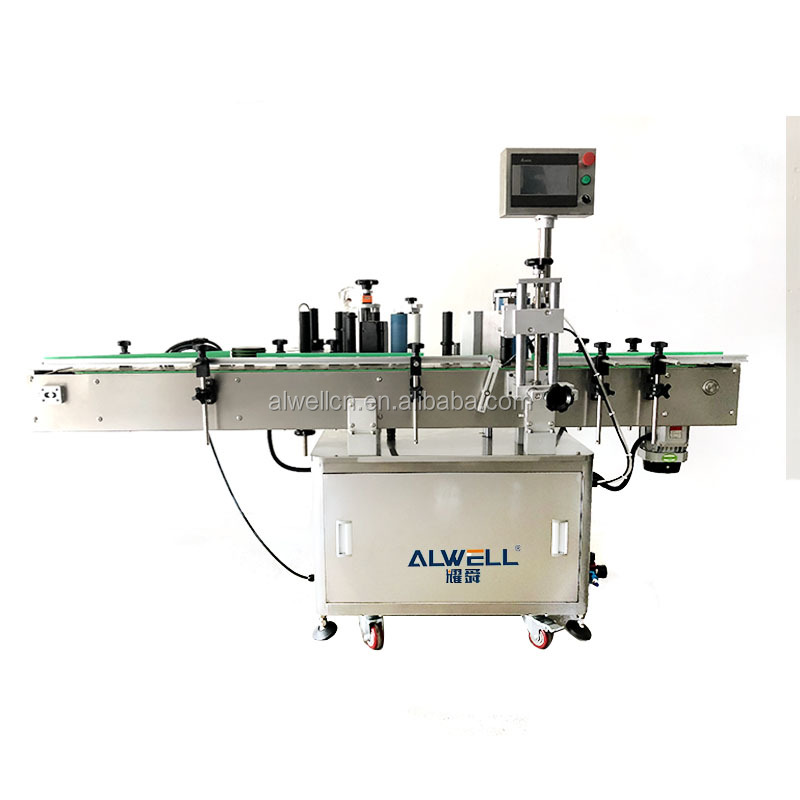

Automatic Plastic Glass Bottle Round Bottle Labeling Machine


Automatic round bottle Labeling machine apply adhesive or sticker labels onto a wide variety of round containers, from small glass bottles to a larger tin cans made with most materials such as PVC, PET, ceramics etc


1-In stock, fast delivery in 5 days 2-We accept customize labeling machine accroding your bottle shape and size 3-Can be connected to Filling Machine, packaging machine, cartoning machine and other production lines
We can also produce other models: double-sided labeling machine, horizontal labeling machine, flat labeling machine, etc.;
Product Paramenters
Model
YSOL
applicable label length (mm)
20mm ~ 285mm
applicable label width (bottom paper width /mm)
20mm ~ 160mm
applicable product diameter (for round bottle) and height
diameter: 25mm ~ 90mm height: 25mm ~ 300mm
applicable to the volume diameter (mm)
280mm
applicable to the volume diameter (mm)
76mm
labeling accuracy (mm)
±1mm
marking speed (m/min)
servo: 5 ~ 25m/min step: 5 ~ 19m/min
labeling speed (PCS /min)
step: 25 ~ 55pcs/min servo: 30 ~ 65pcs/min
conveying speed (m/min)
5 ~ 18m/min
power (W) : traction step
570W traction servo: 980W
air pressure (Mpa)
0.6 ~ 0.8mpa
frequency (HZ)
50HZ
voltage (V)
220V
weight (kg)
about 185kg

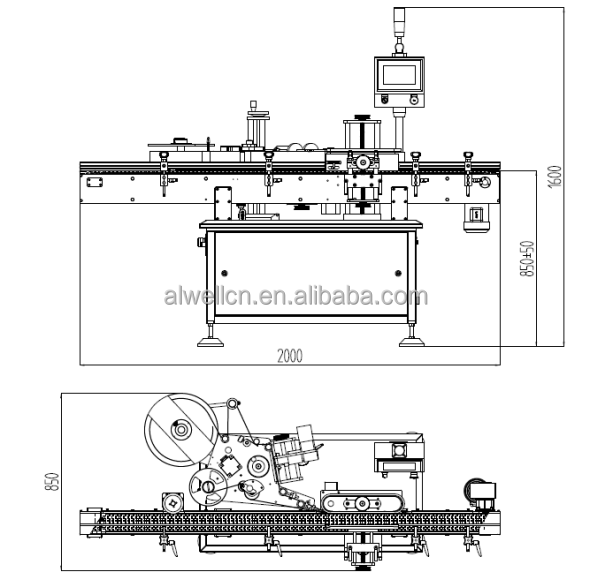

overall size of the equipment (mm) (length × width × height)
1950mm×1200mm×1530mm
Details Images

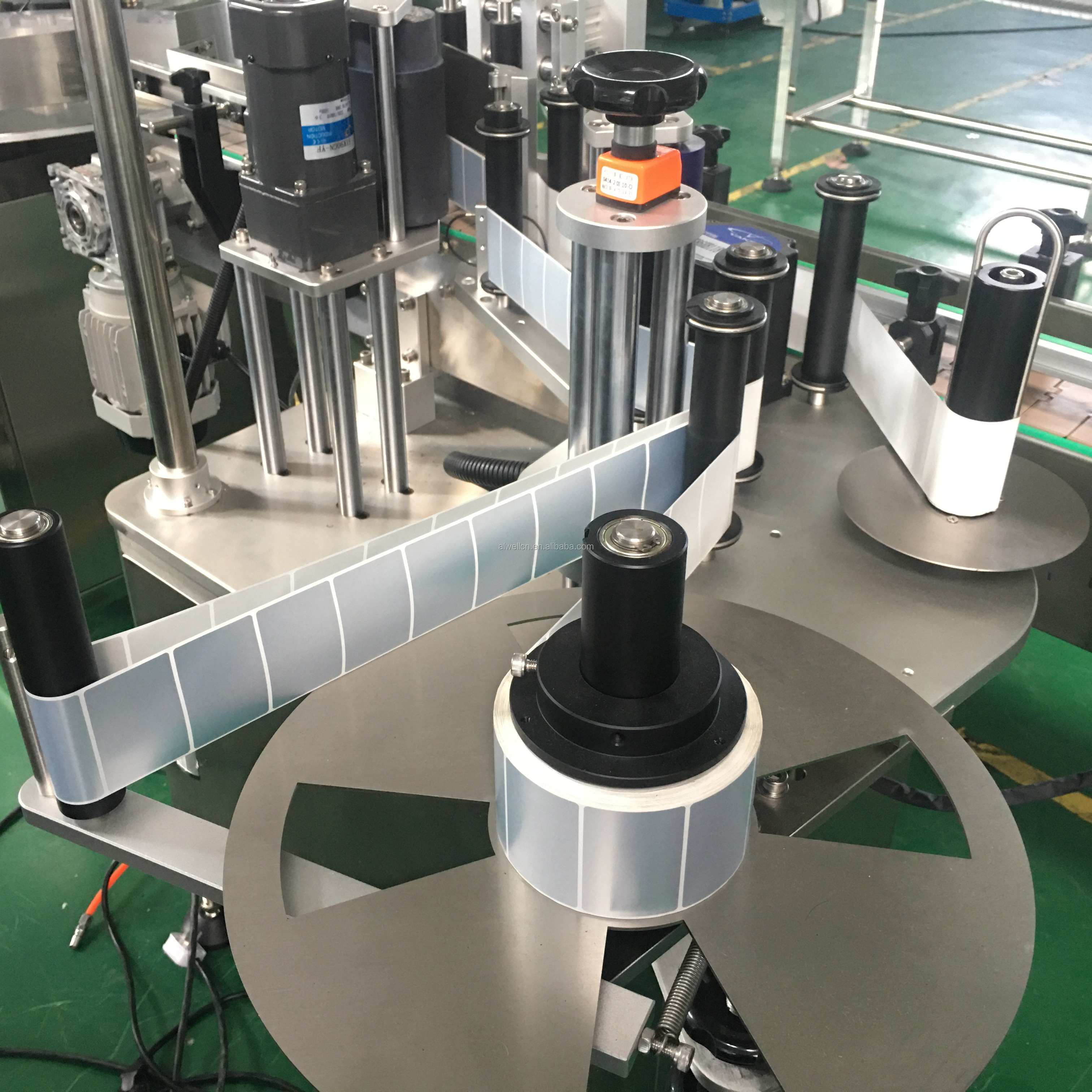

Labeling roll fixing device

Fixed label roll paper to facilitate label paper transfer

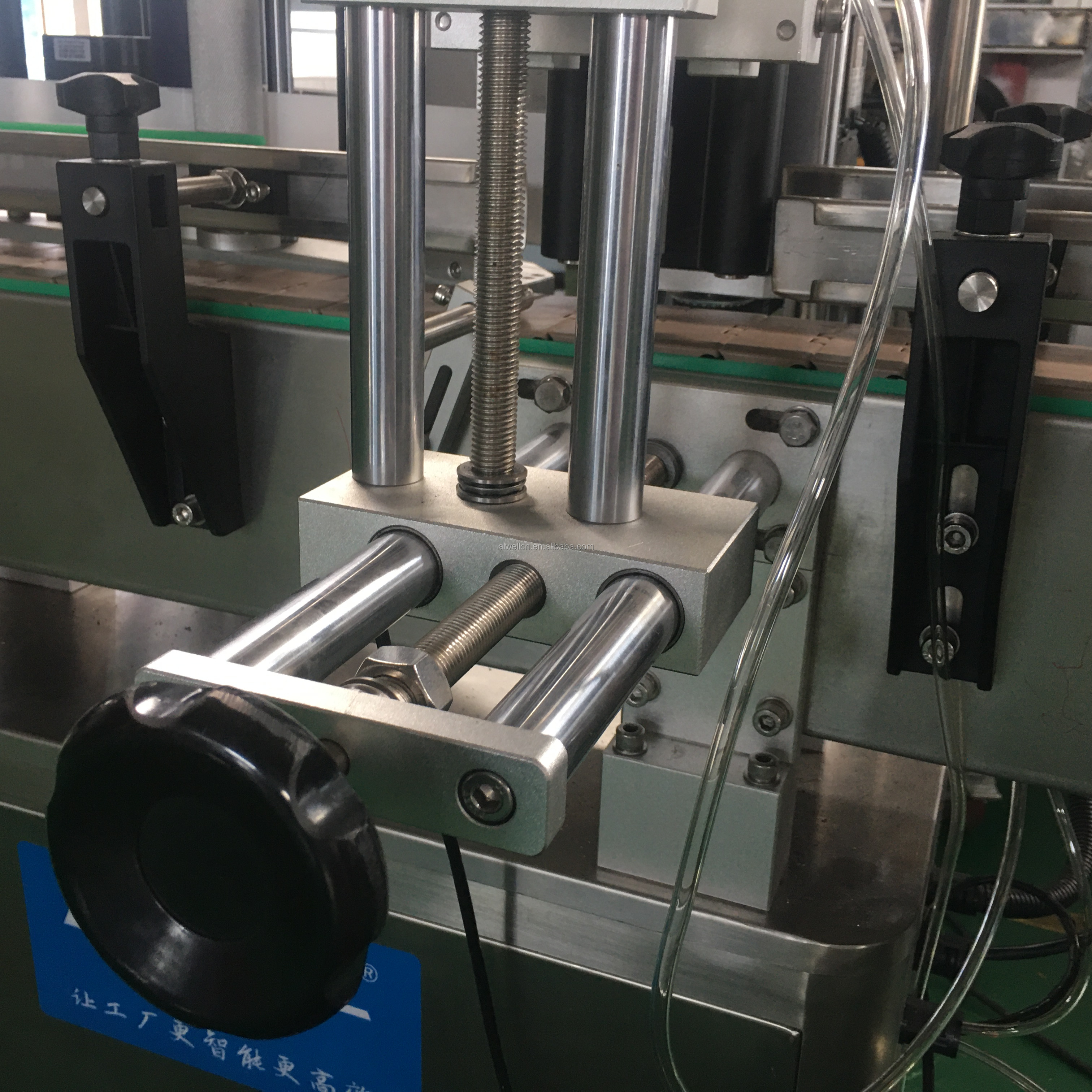

Free handwheel adjustment system

The tilt angle fine-tuning handwheel replaces the adjustment function of the hexagonal wrench, which is simple and convenient to operate

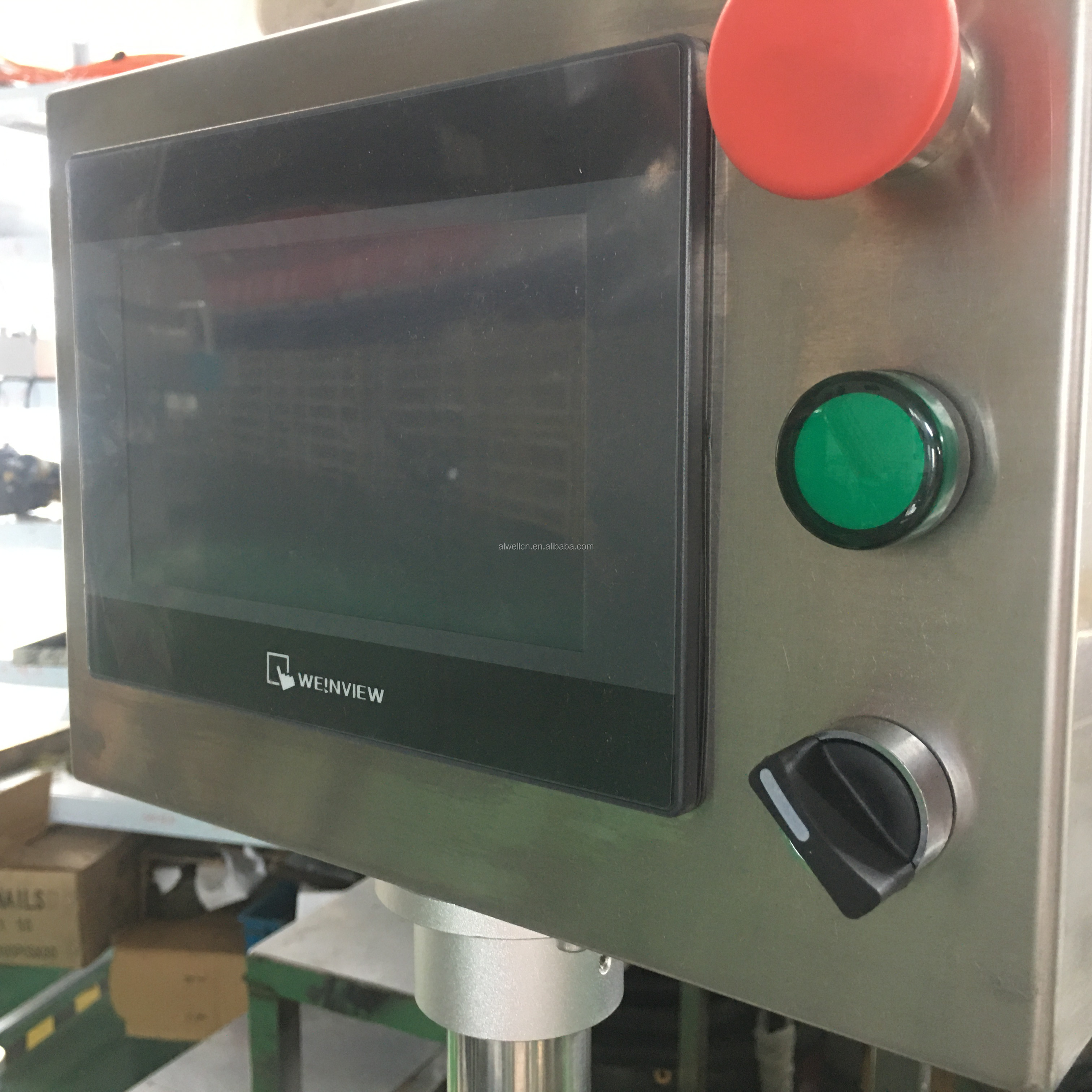

Smart operation interface

Call parameters with one key, save data quickly, realize intelligent operation, convenient and fast

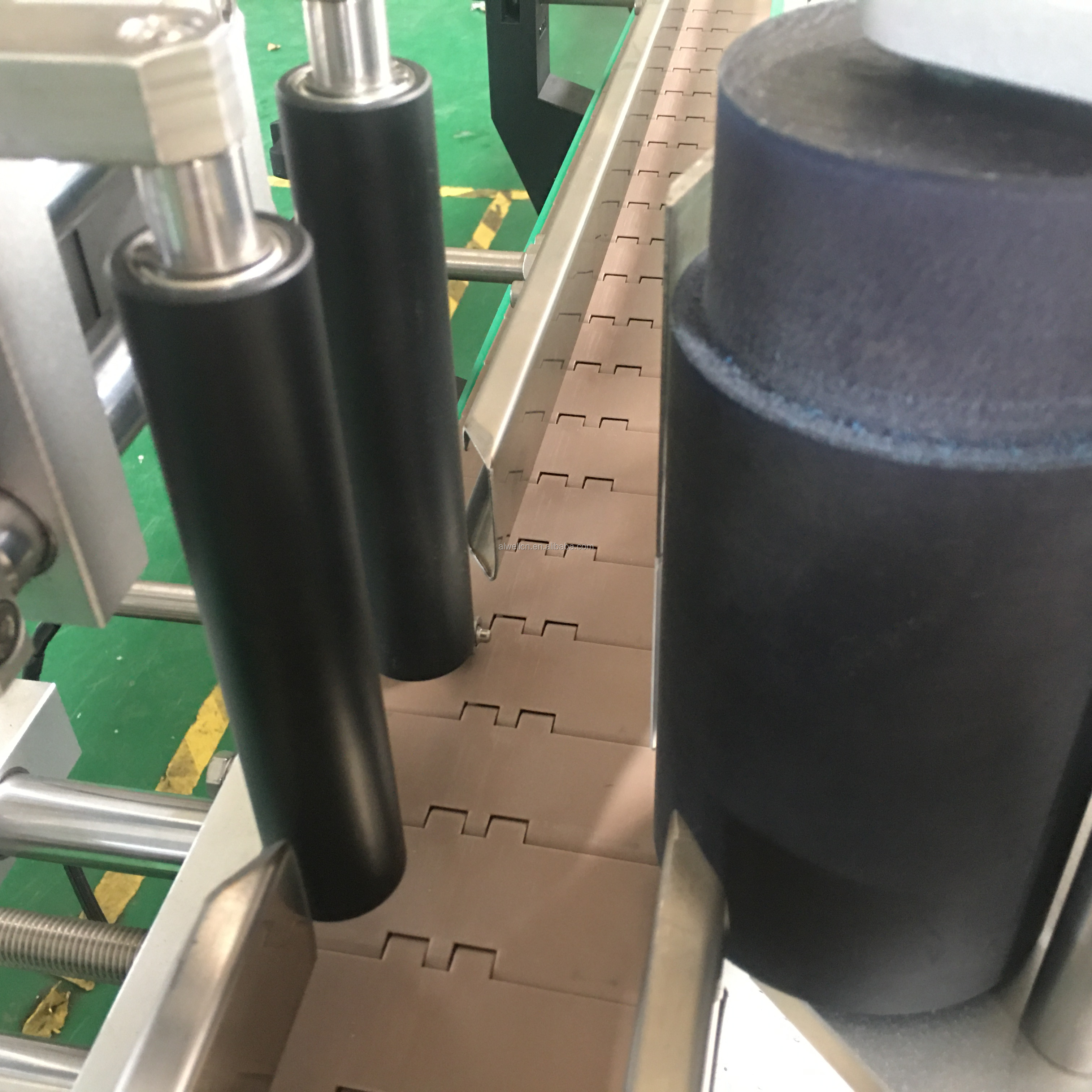

Positioning overriding agency

Used for single label, double label, positioning labeling on various bottle types

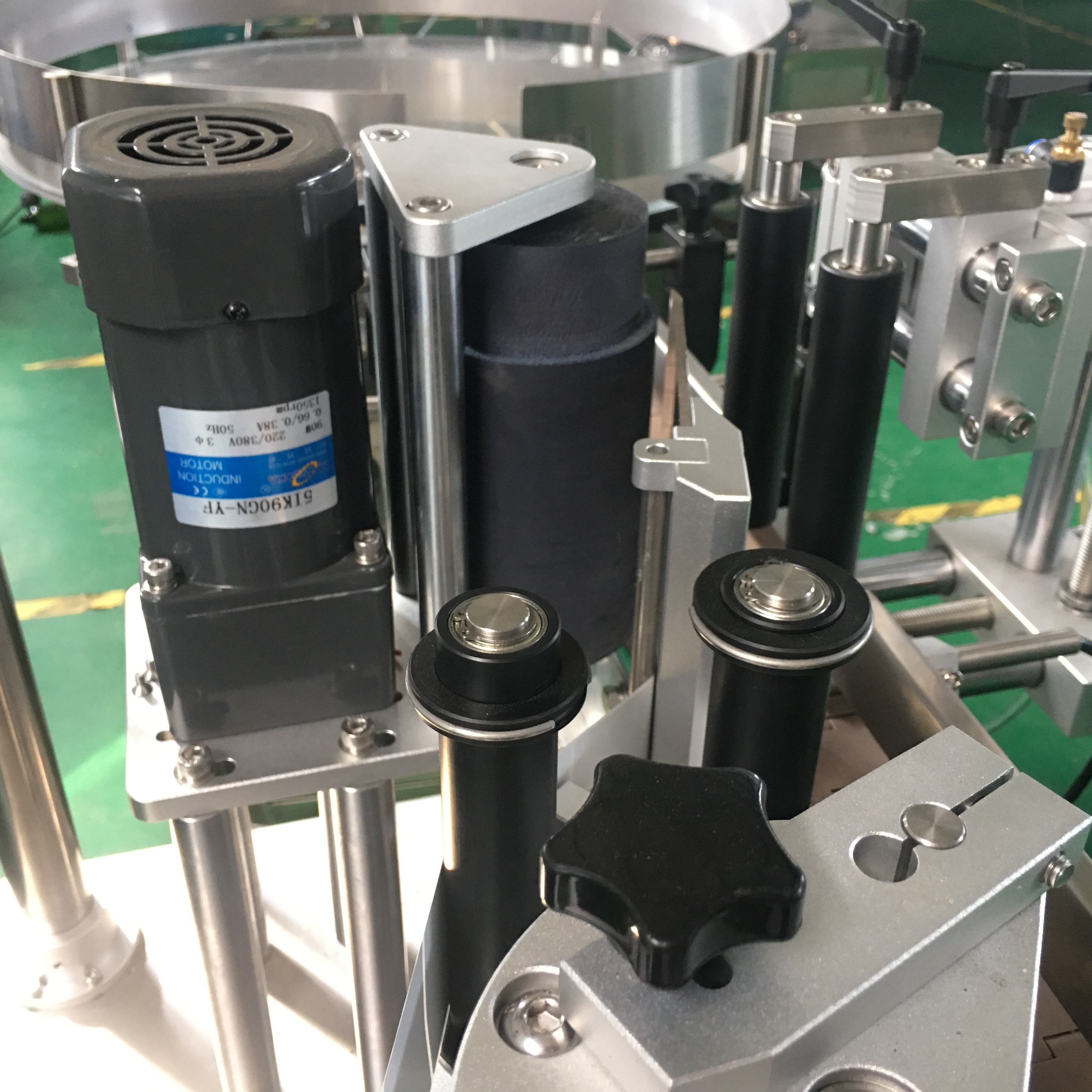

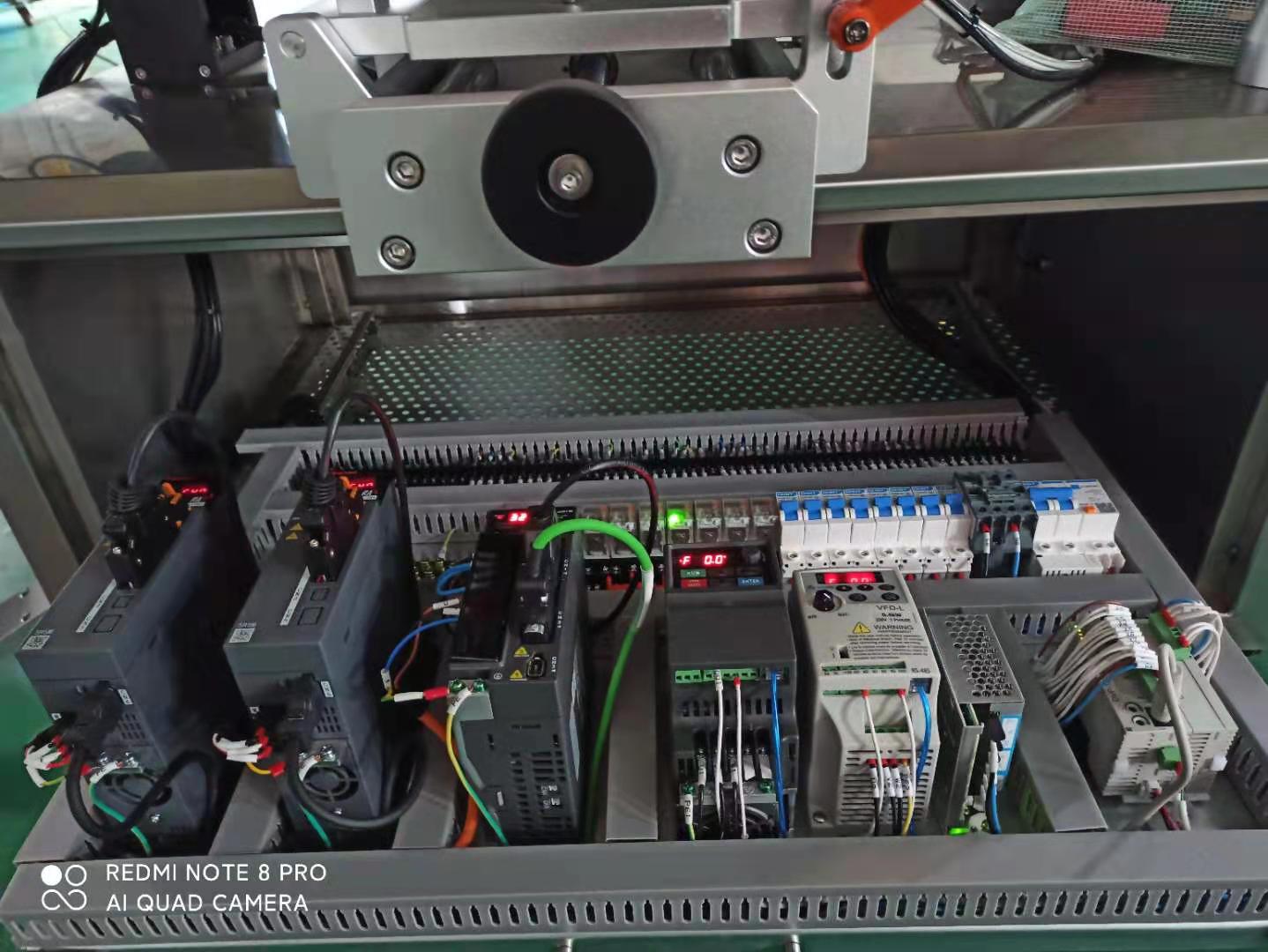

Servo synchronous uppressure system

The plug - in type switchboard is more convenient for maintenance

Recommend Products

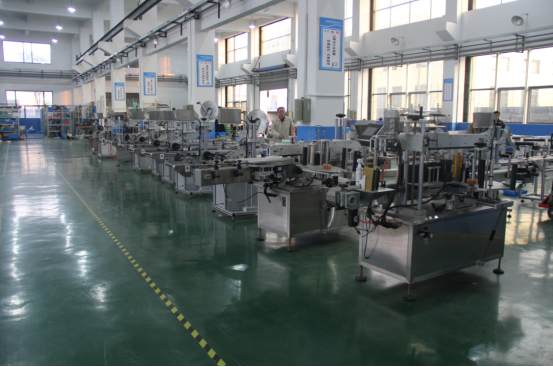

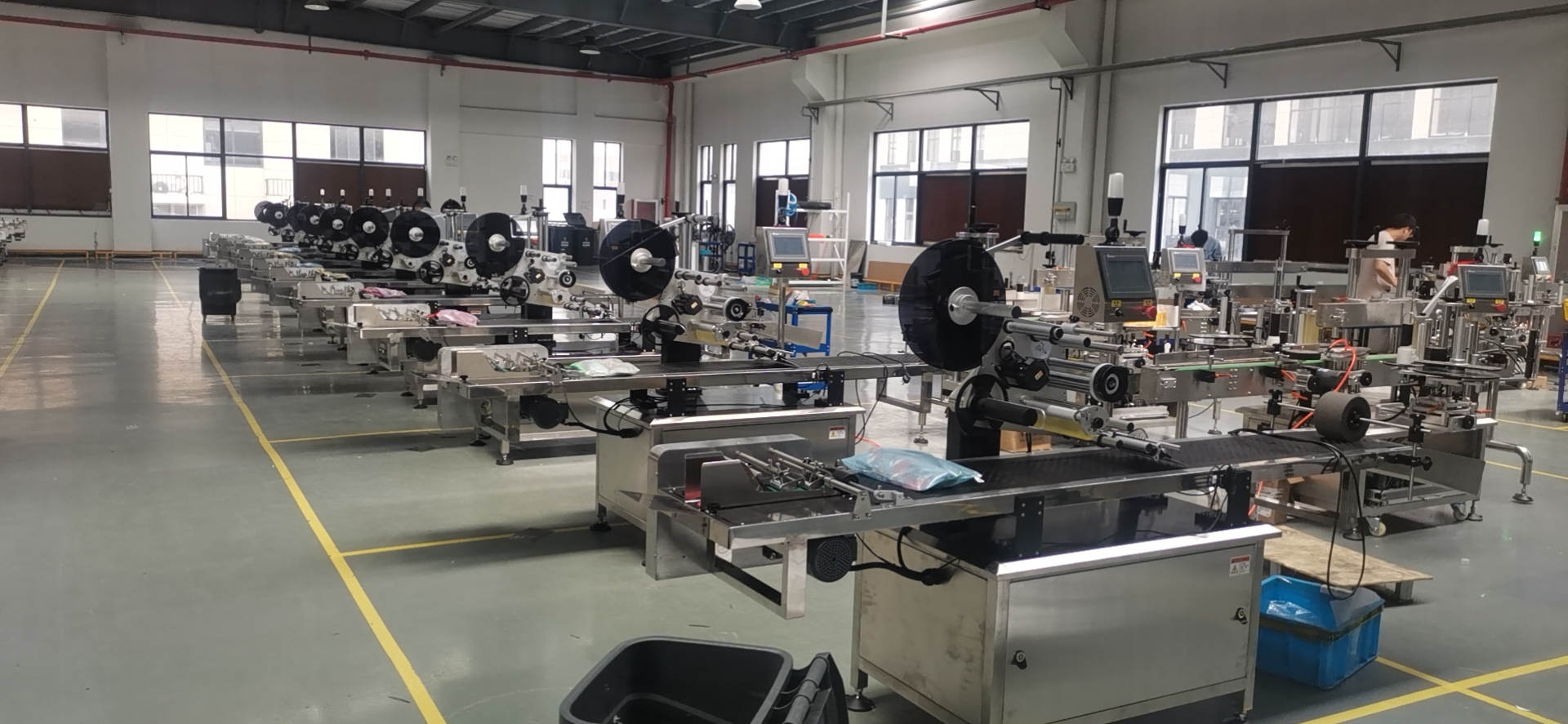

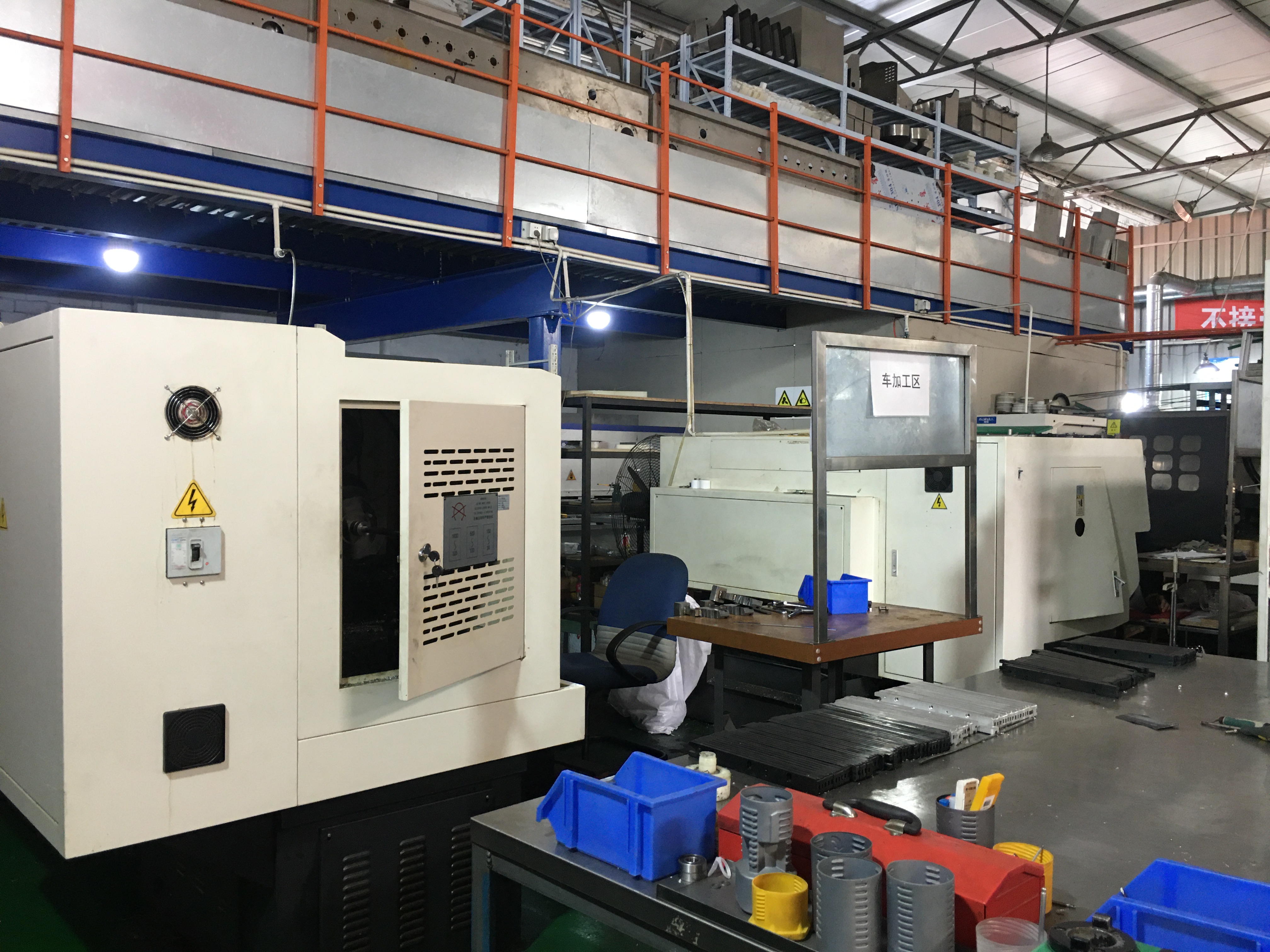

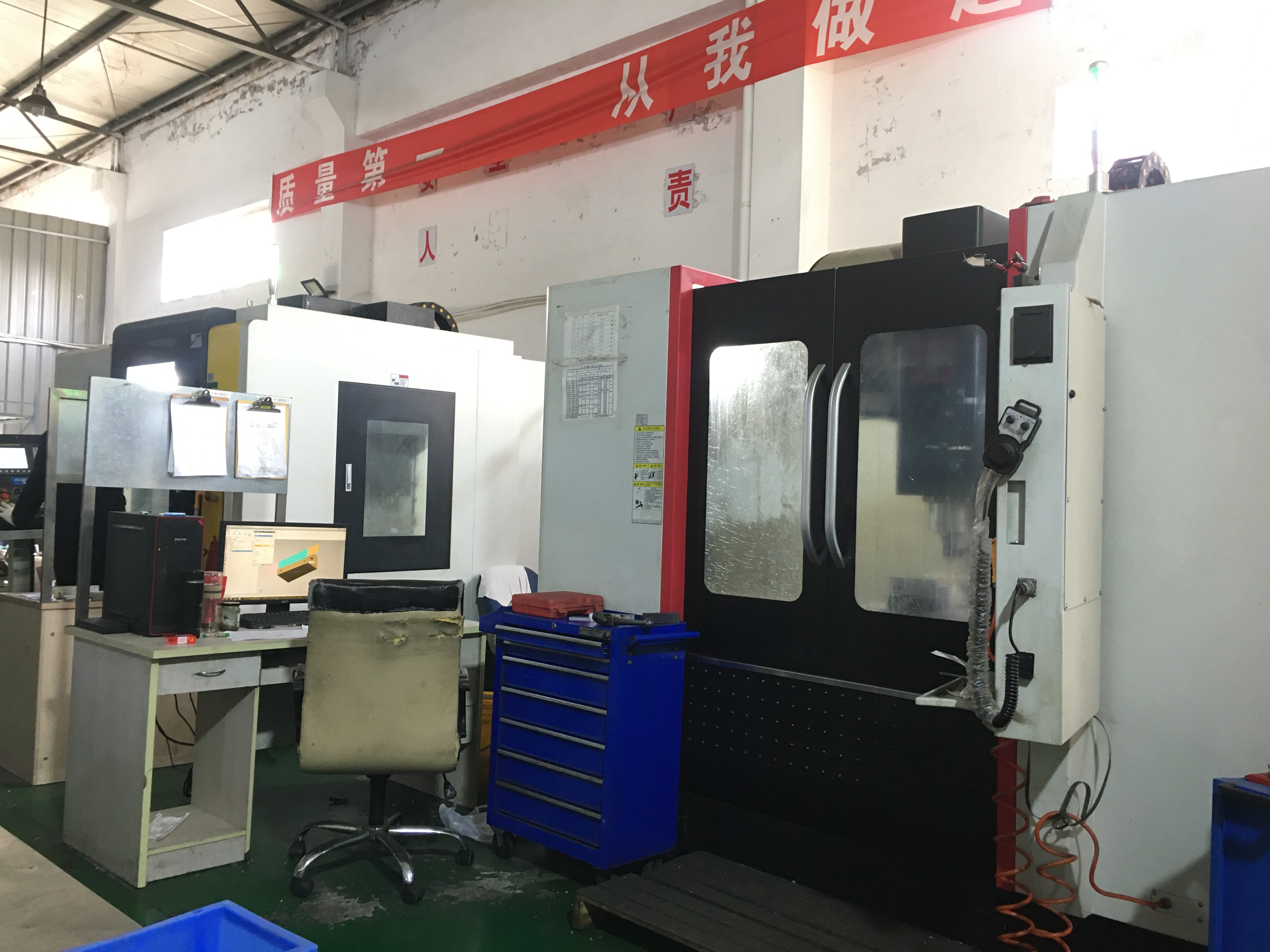

Company Profile

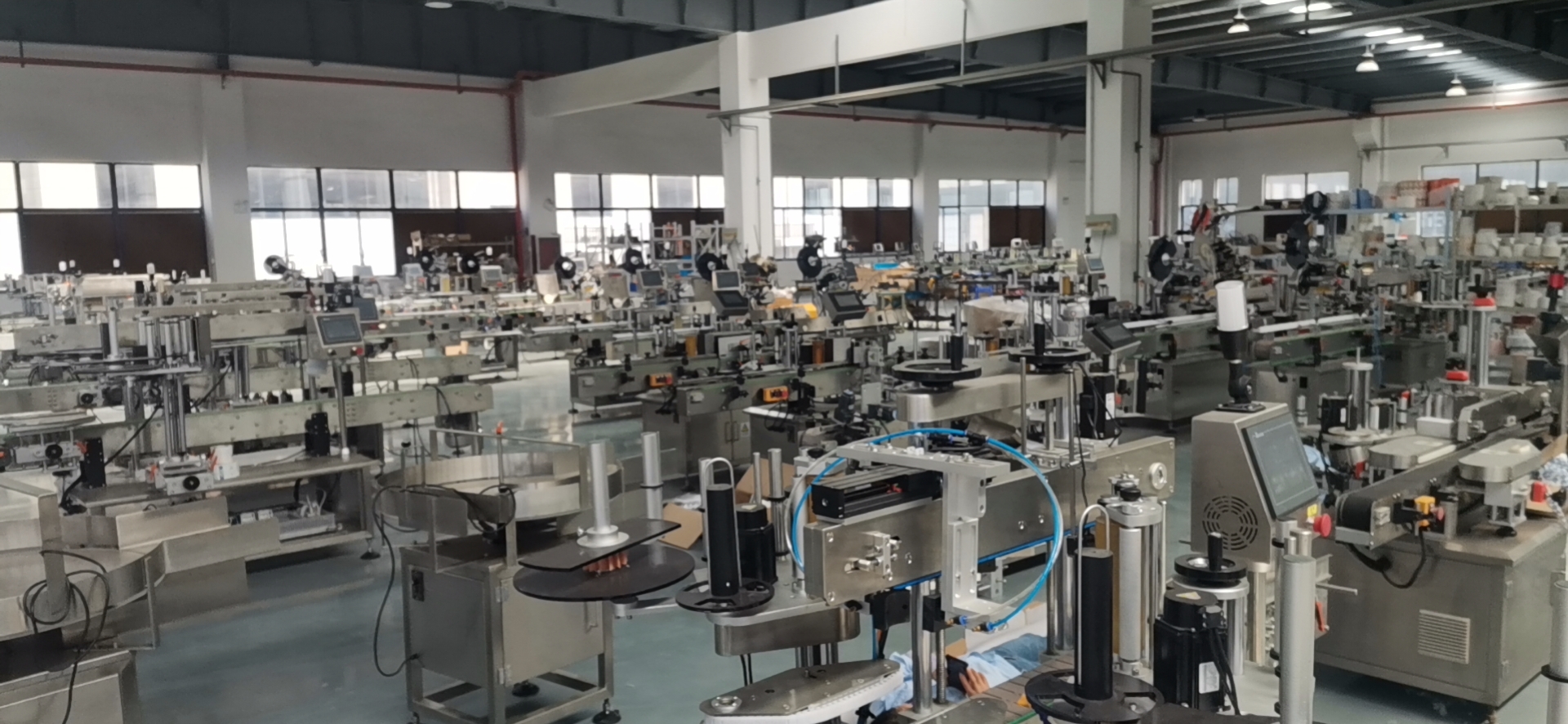

Shanghai ALWELL have more than 2000 Square meters factory.

We have
10 years experience in the industry.Factory direct sale,we can prove very competitive price and durable quality guarantee.
Our main products are check weigher, Metal detector, weight sorting machine, Liquid Filling Machine, Powder filling machine, Syringe filling machine,Capping machine,labeling machine, and supporting production lines.
We have a large stock.
We can fast delivery within 5 days at the earliest.
We support OEM.

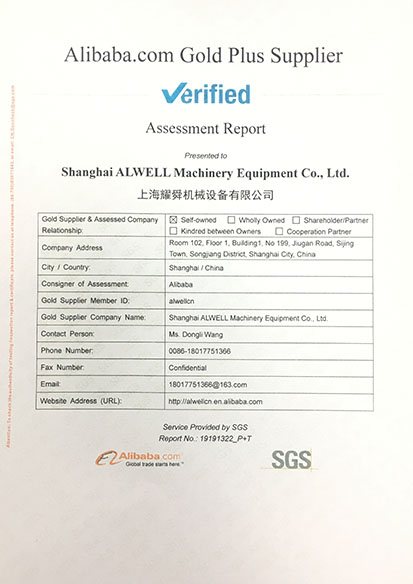

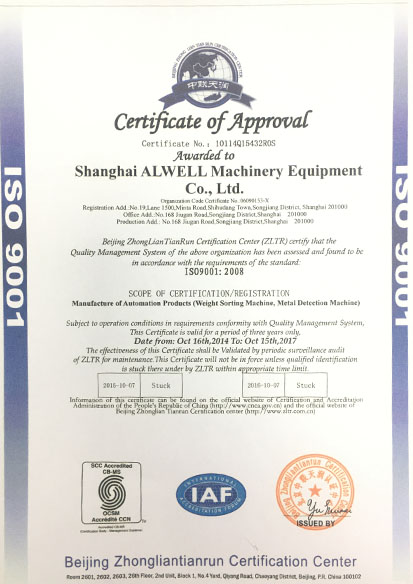

Our Certificates
Customer Show
Our Services

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

Castomized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3..We provide one year warranty

4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

5 .12 Months guarantee and life-long technical support.

6.Your business relationship with us will be confidential to any third party.

7. Good after-sale service offered, please get back to us if you got any questions.

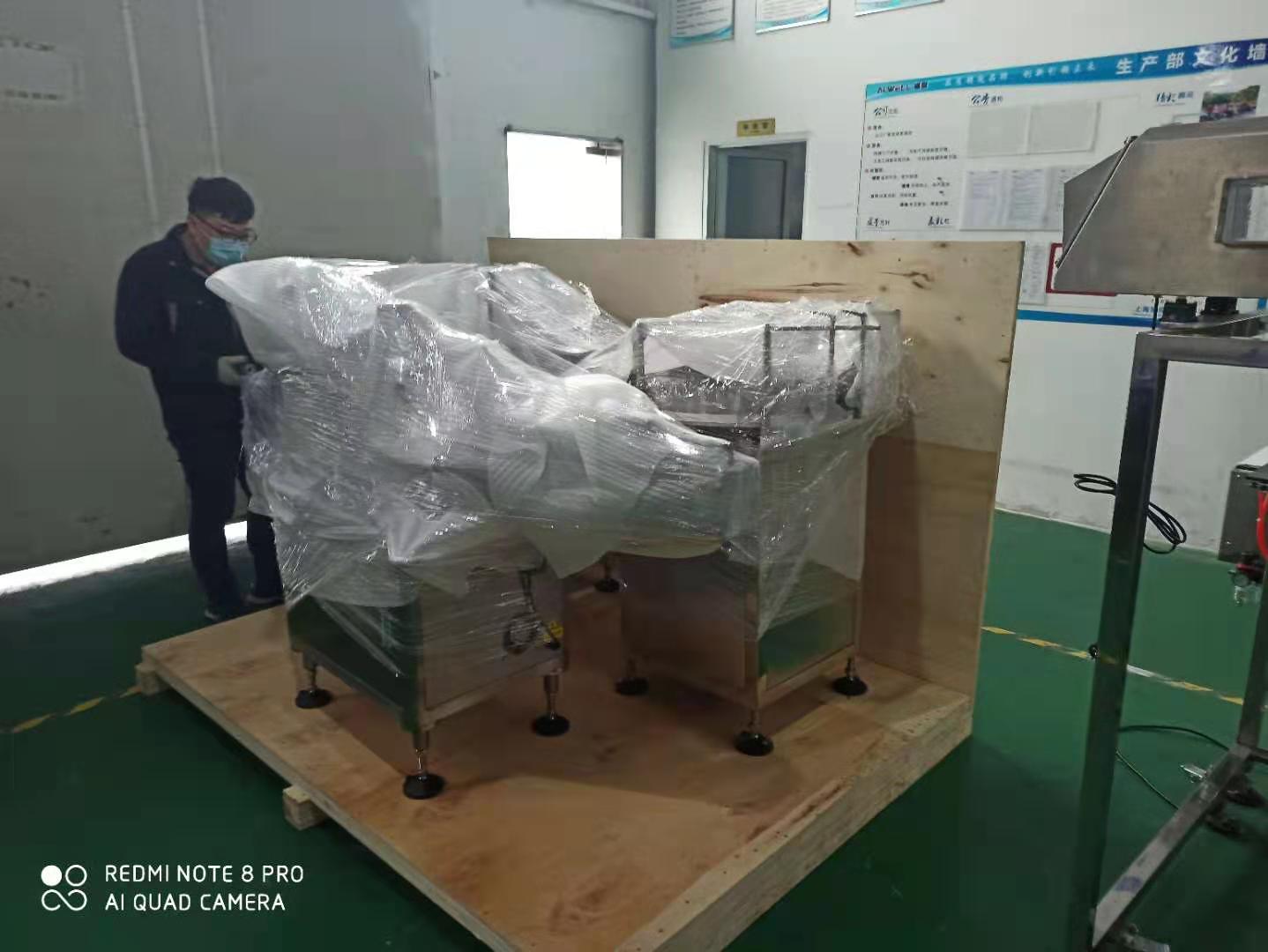

Product packaging
The machine will be fixed and then packed in wooden cases.
Fast Delivery! The earliest delivery is 5 days after payment.
FAQ
1.Are you manufacturer or trader? Where are your factory located?
We are manufacturer and we are located in Shanghai,China.

2.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.

3.How long is your warranty?
12 months free warranty, life-long maintenance.

4.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.

5.What are your company requests of payment terms?
TT,L/C,International Credit Card.

6. What is the validity time of the quotation?
15 days since quotation date

7. What is the delivery time?
Within 15 days after receipt of your deposit.

8. Are you a manufacturer?
Yes, we are a manufacturer, and we can provide the competitive price and good quality.

Any questions or needs contact us (products . trade problem,how place order,shipping fee checking and so on)
Laura

Remark: In view of our products model different ,widely used in many industries ,in order to improve communication efficiency . Therefore, before sending inquiries, please pay attention to the size of the labeled product and the size of the label. so we can choose the suitable one for you ,send detail and quotation to your email .thank you for your understanding .
